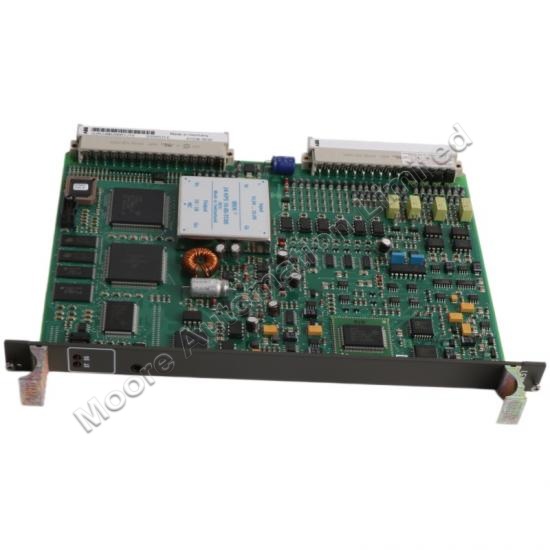

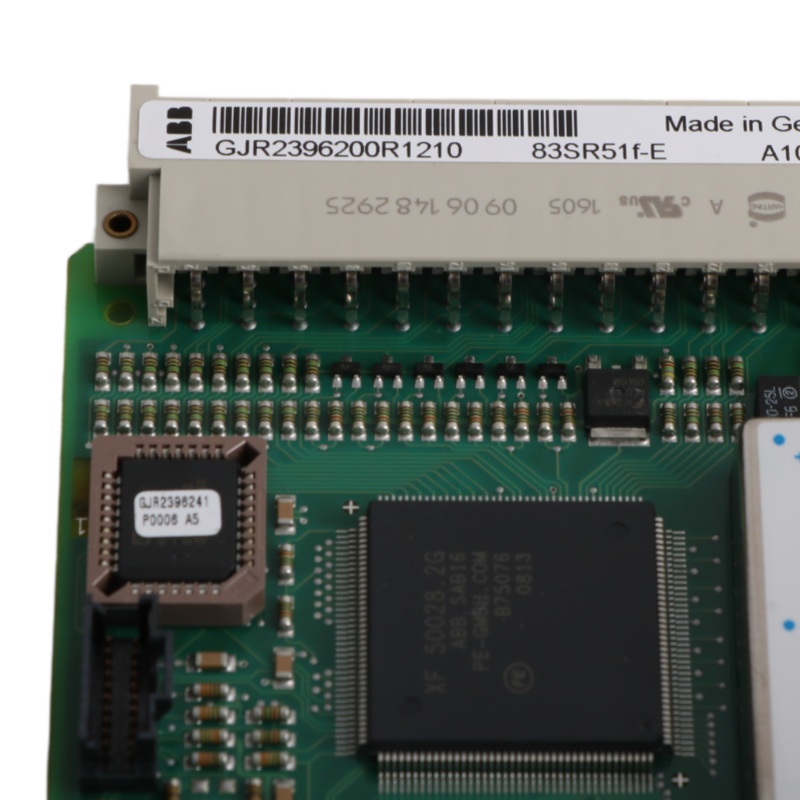

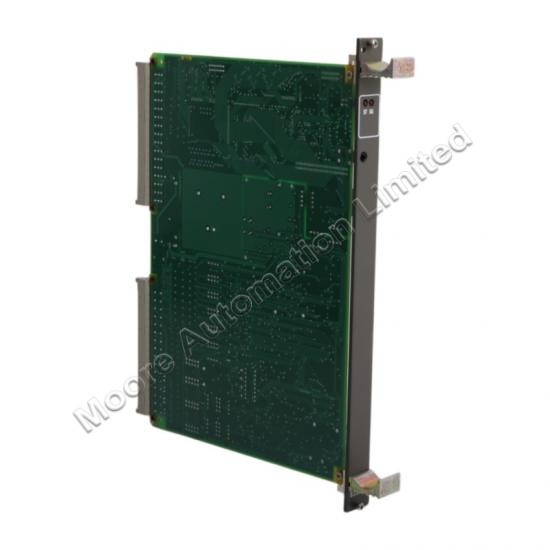

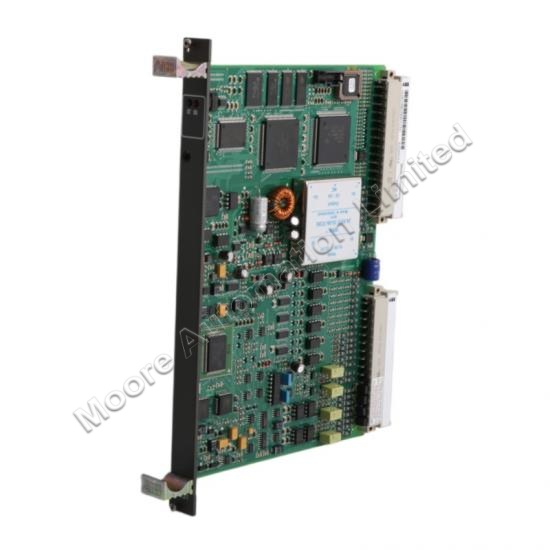

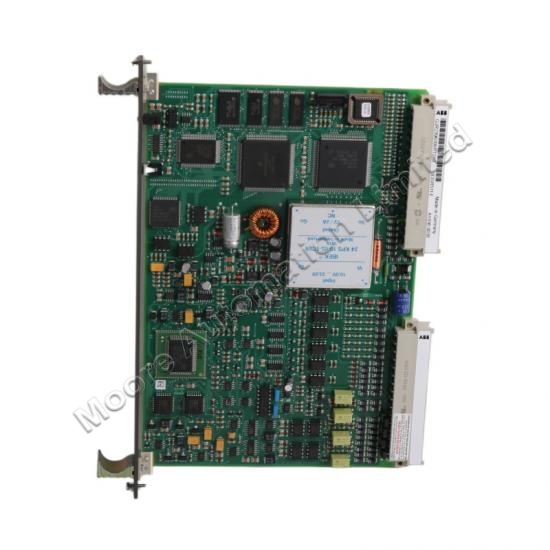

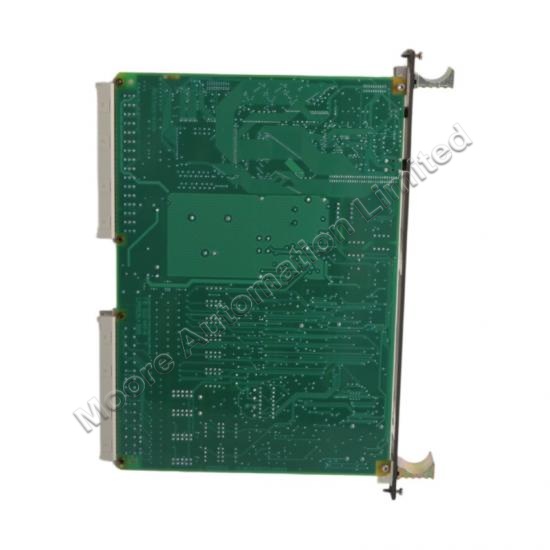

ABB GJR2396200R1210 83SR51F-E Control Module

Product Description:

The ABB GJR2396200R1210 83SR51F-E is a Control Module. It features 2 channels for both binary and analog control, enabling efficient handling of mixed signal types within a single unit. Each channel is equipped with 4 digital inputs (DI), 1 digital output (DO), 2 analog inputs (AI), and 1 analog output (AO), providing comprehensive control and monitoring capabilities. This integrated design simplifies system architecture and reduces the need for additional modules.

Frequently Asked Questions (FAQ):
1.What is the ABB GJR2396200R1210 83SR51F-E?

The ABB GJR2396200R1210 83SR51F-E is a Control Module.

2.How many input channels does the ABB GJR2396200R1210 83SR51F-E Control Module have?
The ABB GJR2396200R1210 83SR51F-E Control Module provides 12 input channels for signal acquisition and monitoring.

3.How many output channels are available on the ABB GJR2396200R1210 83SR51F-E Control Module?
The ABB GJR2396200R1210 83SR51F-E Control Module includes 2 output channels for control and signal output functions.

4.Do you have GJR2396200R1210 83SR51F-E in stock?
Yes, right now we have GJR2396200R1210 83SR51F-E in stock ready for shipment, we can support video inspection.

5.Do you provide warranty as standard?
We provide a full 12-month warranty for the GJR2396200R1210 83SR51F-E. So, if you have any problems within 12 months from the date of delivery, then you can contact our Team who will be happy to help and explain what your next steps should be.

Application:
Thermal power generation: Controls the coal feeder, induced draft fan, forced draft fan and circulating water pump of the boiler system.
Hydroelectricity/Gas Turbine: Responsible for the logical switching of the governor system and the oil pump unit.
Petroleum and Natural Gas: Applied in hydrogenation and cracking units of refineries.
Large-scale Metallurgy and Steel: Controls the blast air system of the blast furnace, the steel rolling production line and the cooling water system of the continuous casting machine.
Chemical Industry: Responsible for the positioning of electric control valves and the interlock protection of pump groups in the control of distillation towers and reaction vessels.
Pulp and Paper Making: Used in the transmission control system of paper machines and the flow regulation control of the wet part.

Core functions:
Control tasks: Mainly perform binary control (on/off), step control (three-step control), and analog positioning control.
Dual-channel design: One module typically contains two logically independent control channels (Channel 1 & 2), which can simultaneously drive two different actuators.
Signal processing: Supports limit switch feedback, torque switch alarm, operation time monitoring, and processing of position feedback signals (4-20mA or 0-10V).

Self-diagnosis function:
ST light (disturbance): When this light is on, it indicates abnormal communication on the external bus or abnormal process signals.
SG light (fault): When this light is on, it means there is a hardware failure within the module.
